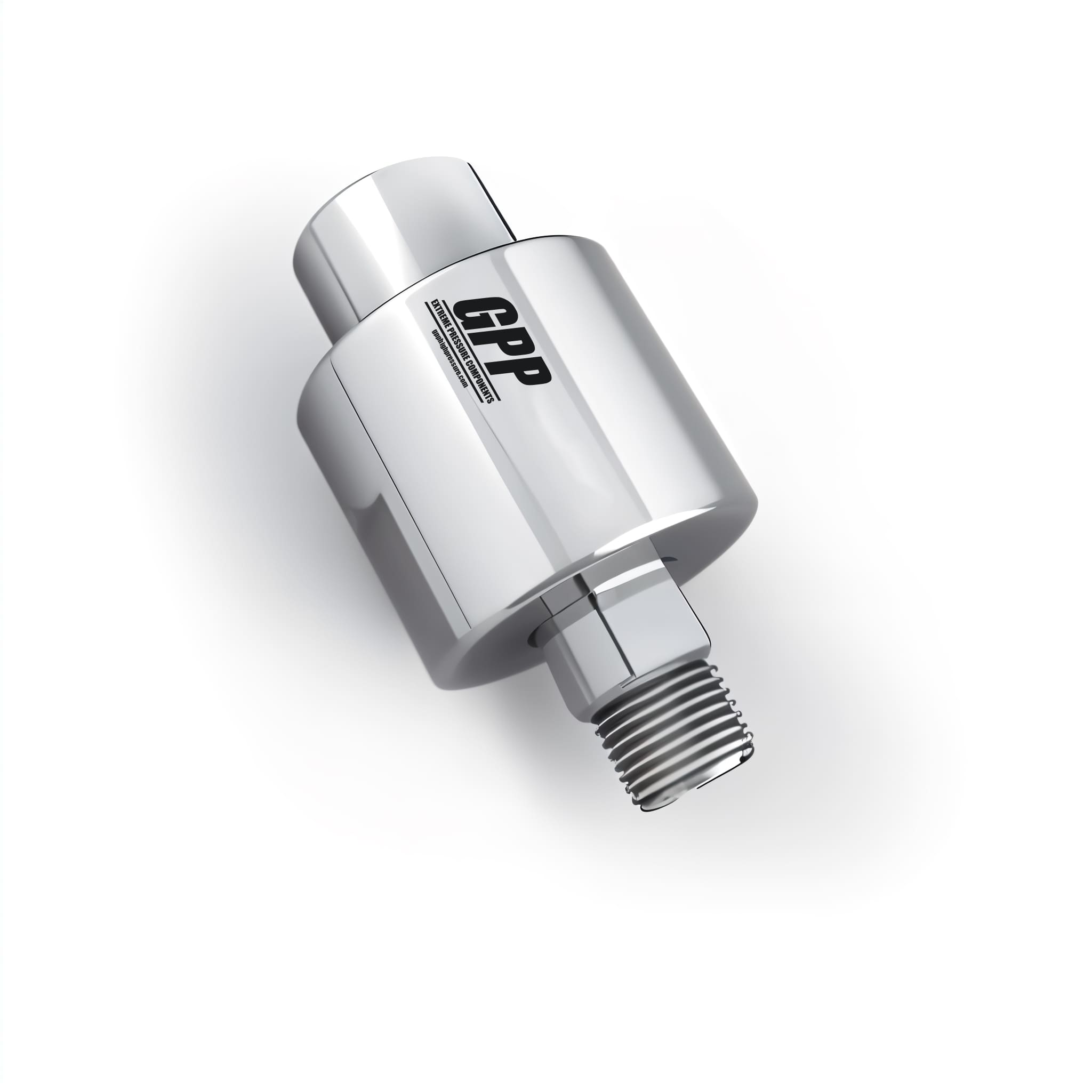

GSH Swivel
The GSH swivel is a compact and versatile union engineered to transfer high-pressure fluids from a fixed source to a rotating or twisting component.
Designed for flexibility, GSH swivels can be positioned between a tool’s inlet and a high-pressure hose to minimize hose twisting and improve maneuverability. They also enable smooth, low-speed rotary motion in various applications.
Key Features:
- Durable stainless-steel construction for long-lasting performance
- Innovative, leak-resistant seal that allows smooth rotation with minimal torque
- External grease fittings for convenient maintenance
- 0° or 90° inlet connection options for optimized hose routing
GSH Swivel Data
| PART # | PRESSURE | FLOW | M. CONNECT | F. CONNECT | TOOL | OVERHAUL KIT | SERVICE KIT |
|---|---|---|---|---|---|---|---|
| GSH-8P | 2-15 KSI / 140-1000 bar | 50 gpm / 190 l/min | 1/2 NPT (P8) | 1/2 NPT (P8) | T-801 | KG-SH8-O | KG-SH8-S |
| GSH-8P-90 | 2-15 KSI / 140-1000 bar | 50 gpm / 190 l/min | 1/2 NPT (P8) | 1/2 NPT (P8) | T-801 | KG-SH8-O | KG-SH8-S |
