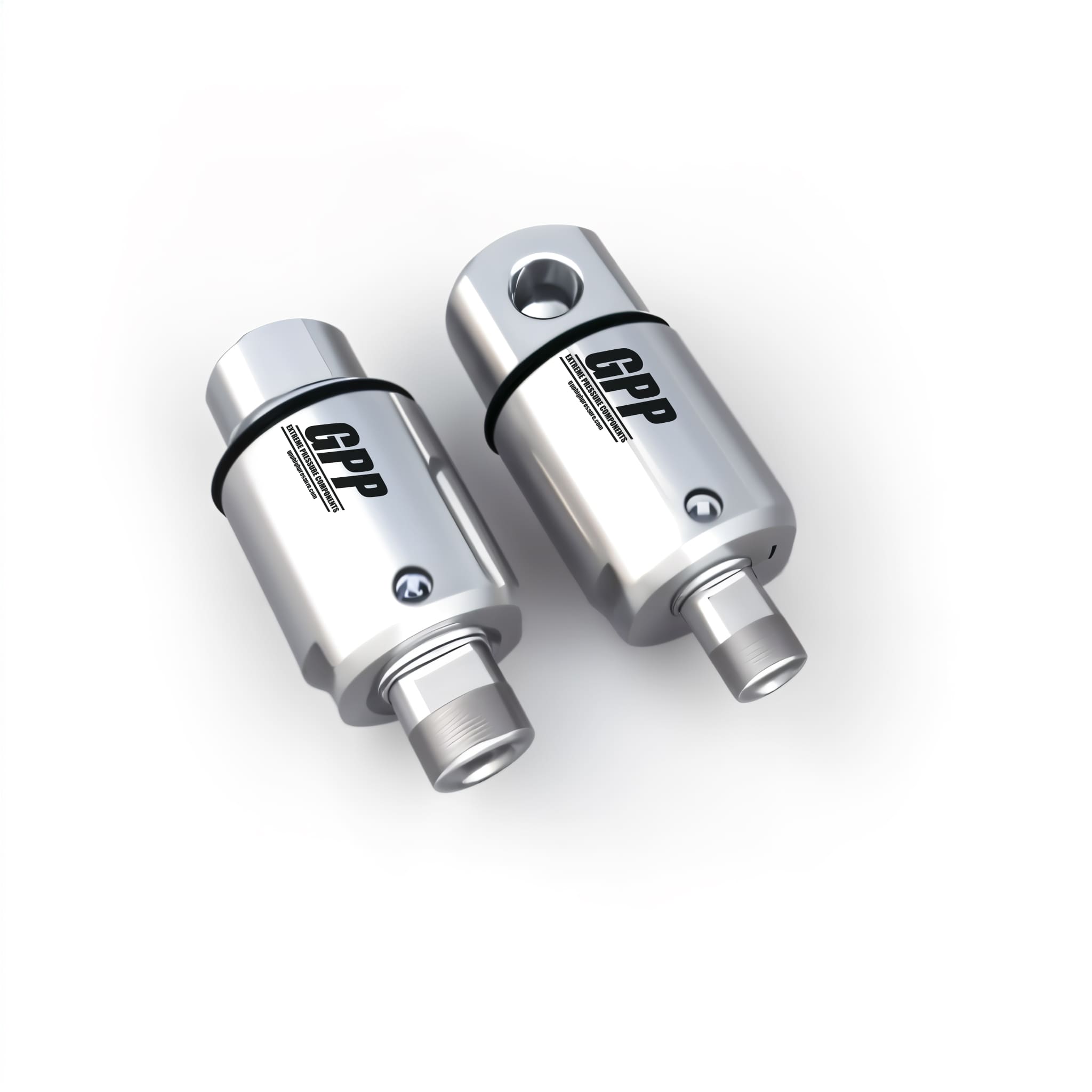

GSM Swivel
GSM swivels are designed to transfer high-pressure fluid from a stationary source to a rotating or twisting component. They are ideal for applications where an external motor or gearbox drives rotation. Additionally, GSM swivels can be utilized in hose reels or connections to improve hose management and flexibility.
Engineered similarly to the GSG swivel, the GSM series is a heavy-duty solution capable of handling up to 3500 HP.
Key Features
- Durable stainless-steel construction for high-strength performance
- Innovative seal design minimizes torque requirements while preventing leaks
- Multiple inlet options to accommodate varying pressure needs
- External grease fittings for straightforward maintenance
- Available in 0° or 90° inlet configurations to simplify hose routing
GSM Swivel Data
| PART # | PRESSURE | SPEED | FLOW | M. CONNECT | F. CONNECT | TOOL | OVERHAUL KIT | SERVICE KIT |
|---|---|---|---|---|---|---|---|---|
| GSM-16PLS | 2-12 KSI / 140-827 bar | 300 RPM | 300 gpm / 1137 l/min | 1 NPT (P16) | 1 NPT (P16) | T-803 | KG-SM16-O | KG-SM16-S |
| GSM-16PLS-90 | 2-12 KSI / 140-827 bar | 300 RPM | 300 gpm / 1137 l/min | 1 NPT (P16) | 1 NPT (P16) | T-803 | KG-SM16-O | KG-SM16-S |
| GSM-16P | 2-12 KSI / 140-827 bar | 300 RPM | 300 gpm / 1137 l/min | 1 NPT (P16) | 1 NPT (P16) | T-803 | KG-SM16-O | KG-SM16-S |
| GSM-16P-90 | 2-12 KSI / 140-827 bar | 300 RPM | 300 gpm / 1137 l/min | 1 NPT (P16) | 1 NPT (P16) | T-803 | KG-SM16-O | KG-SM16-S |
