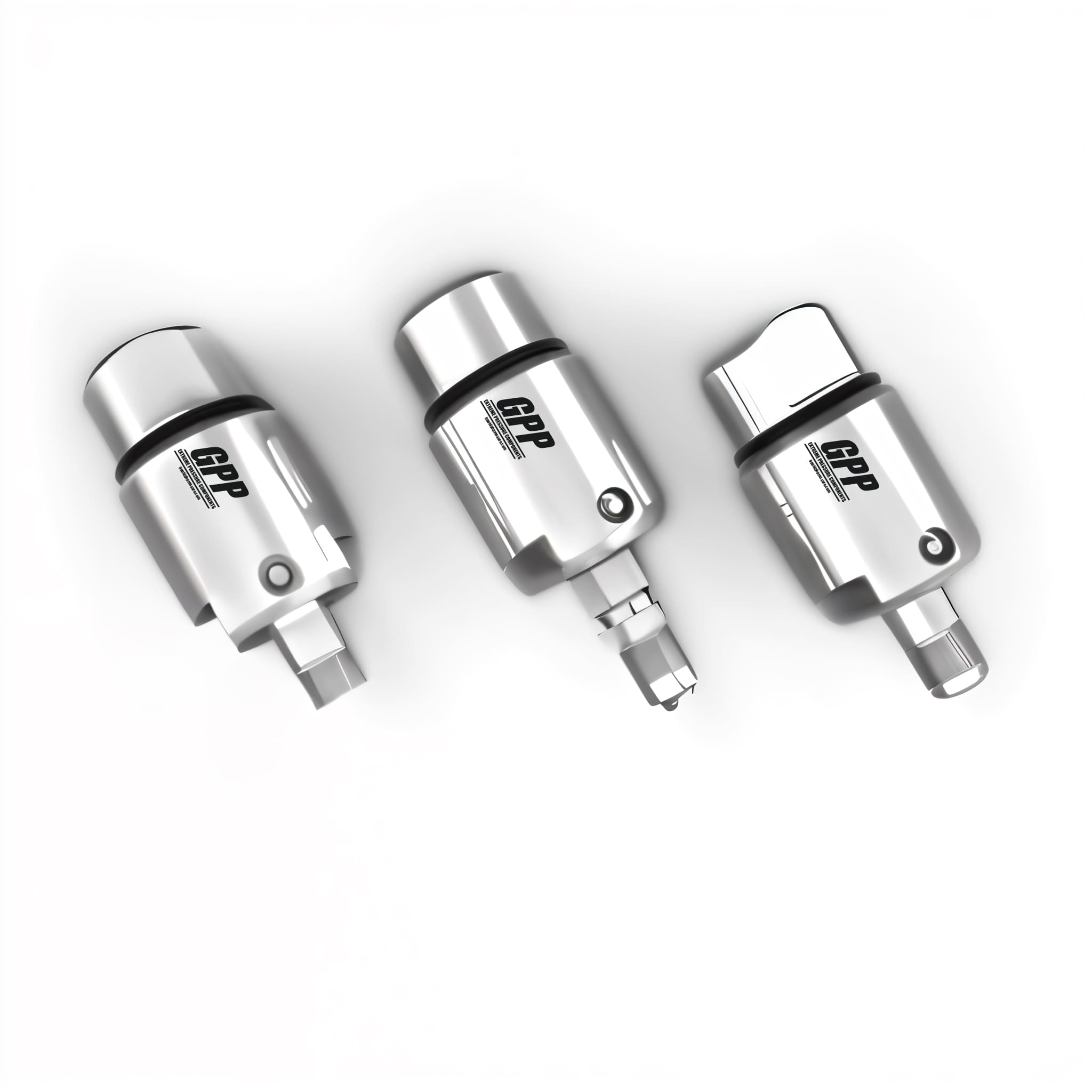

SG Swivel
SG Swivels are durable, low-maintenance, and commonly used in surface preparation tools. Engineered with heavy-duty ball bearings, external grease fittings, stainless steel construction, and long-lasting high-pressure seals, they set the standard for performance and reliability in the industry.
Key Features:
- Robust stainless steel construction for enhanced durability
- Innovative, leak-resistant seal design requires minimal torque for rotation
- Multiple inlet options allow for versatile pressure compatibility
- External grease fittings enable convenient maintenance
- Available with 0° or 90° inlet connections for simplified hose management
SG Swivel Data
| PART # | PRESSURE | SPEED | FLOW | FLOW RATING | M. CONNECT | F. CONNECT | TOOL | OVERHAUL KIT | SERVICE KIT |
|---|---|---|---|---|---|---|---|---|---|
| GSG-8P | 2-15 KSI / 140-1000 bar | 600 RPM | 60 gpm / 227 l/min | N/A | 1/2 NPT (P8) | 1/2 NPT (P8) | T-802 | KG-SG8-O | KG-SG8-S |
| GSG-8P-90 | 2-15 KSI / 140-1000 bar | 600 RPM | 60 gpm / 227 l/min | N/A | 1/2 NPT (P8) | 1/2 NPT (P8) | T-802 | KG-SG8-O | KG-SG8-S |
| GSG-12MP | 2-20 KSI / 140-1400 bar | 600 RPM | 50 gpm / 190 l/min | N/A | 3/4 (MP12) | 3/4 (MP12) | T-802 | KG-SG12-O | KG-SG12-S |
| GSG-12MP-90 | 2-20 KSI / 140-1400 bar | 600 RPM | 50 gpm / 190 l/min | N/A | 3/4 (MP12) | 3/4 (MP12) | T-802 | KG-SG12-O | KG-SG12-S |
