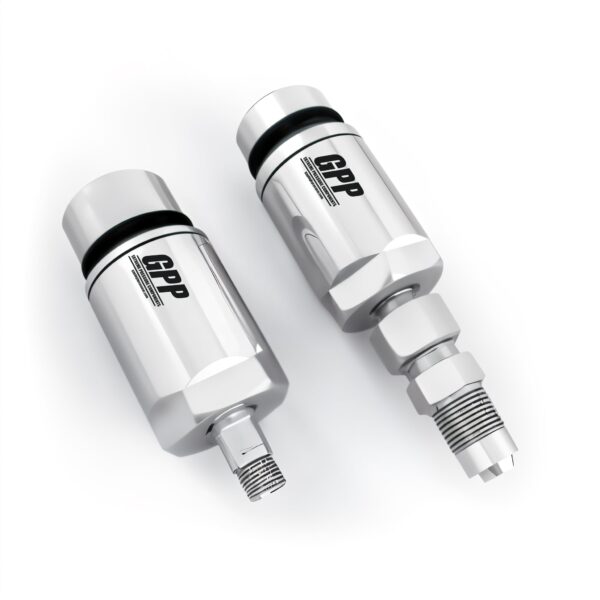

SL Swivel
The SL Swivel is engineered as a compact and versatile union, designed to efficiently transfer high-pressure fluid from a stationary source to a rotating or twisting assembly.
Thanks to its innovative seal design, the swivel requires minimal torque for rotation, even under extreme pressures. At 10,000 psi, only 5 in-lb of torque is needed to initiate movement.
Key Features
- Durable Construction: Built with heavy-duty stainless steel for enhanced strength and longevity.
- Optimized Seal Design: Ensures a secure, leak-free performance while maintaining low torque requirements.
- Versatile Inlet Options: Supports multiple configurations to accommodate varying pressure levels.
- Convenient Maintenance: Equipped with external grease fittings for easy servicing.
- Flexible Hose Routing: Available with 0° or 90° inlet connections for simplified installation.
SL Swivel Data
| PART # | PRESSURE | SPEED | FLOW | FLOW RATING | M. CONNECT | F. CONNECT | TOOL | OVERHAUL KIT | SERVICE KIT |
|---|---|---|---|---|---|---|---|---|---|
| GSL-4P | 1-15 KSI / 70-1000 bar | 1000 RPM | 35 gpm / 132 l/min | 1.6 Cv | 1/4 NPT (P4) | 1/4 NPT (P4) | T-800 | KG-SL4-O | KG-SL4-S |
| GSL-4P-90 | 1-15 KSI / 70-1000 bar | 1000 RPM | 35 gpm / 132 l/min | 1.6 Cv | 1/4 NPT (P4) | 1/4 NPT (P4) | T-800 | KG-SL4-O | KG-SL4-S |
| GSL-9MPLS | 2-22 KSI / 140-1500 bar | 800 RPM | 25 gpm / 95 l/min | 1.1 Cv | 9/16 (MP9) | 9/16 (MP9) | T-800 | KG-SL9-O | KG-SL9-S |
| GSL-9MPLS-90 | 2-22 KSI / 140-1500 bar | 800 RPM | 25 gpm / 95 l/min | 1.1 Cv | 9/16 (MP9) | 9/16 (MP9) | T-800 | KG-SL9-O | KG-SL9-S |
| GSL-9MP | 2-22 KSI / 140-1500 bar | 800 RPM | 25 gpm / 95 l/min | 1.1 Cv | 9/16 (MP9) | 9/16 (MP9) | T-800 | KG-SL9-O | KG-SL9-S |
| GSL-9MP-90 | 2-22 KSI / 140-1500 bar | 800 RPMv | 25 gpm / 95 l/min | 1.1 Cv | 9/16 (MP9) | 9/16 (MP9) | T-800 | KG-SL9-O | KG-SL9-S |
| GSL-9MP-GAV | 2-22 KSI / 140-1500 bar | 800 RPM | 25 gpm / 95 l/min | 1.1 Cv | 9/16 (MP9) | 9/16 (MP9) | T-800 | KG-SL9-O | KG-SL9-S |
| GLS-9MP-90GAV | 2-22 KSI / 140-1500 bar | 800 RPM | 25 gpm / 95 l/min | 1.1 Cv | 9/16 (MP9) | 9/16 (MP9) | T-800 | KG-SL9-O | KG-SL9-S |
