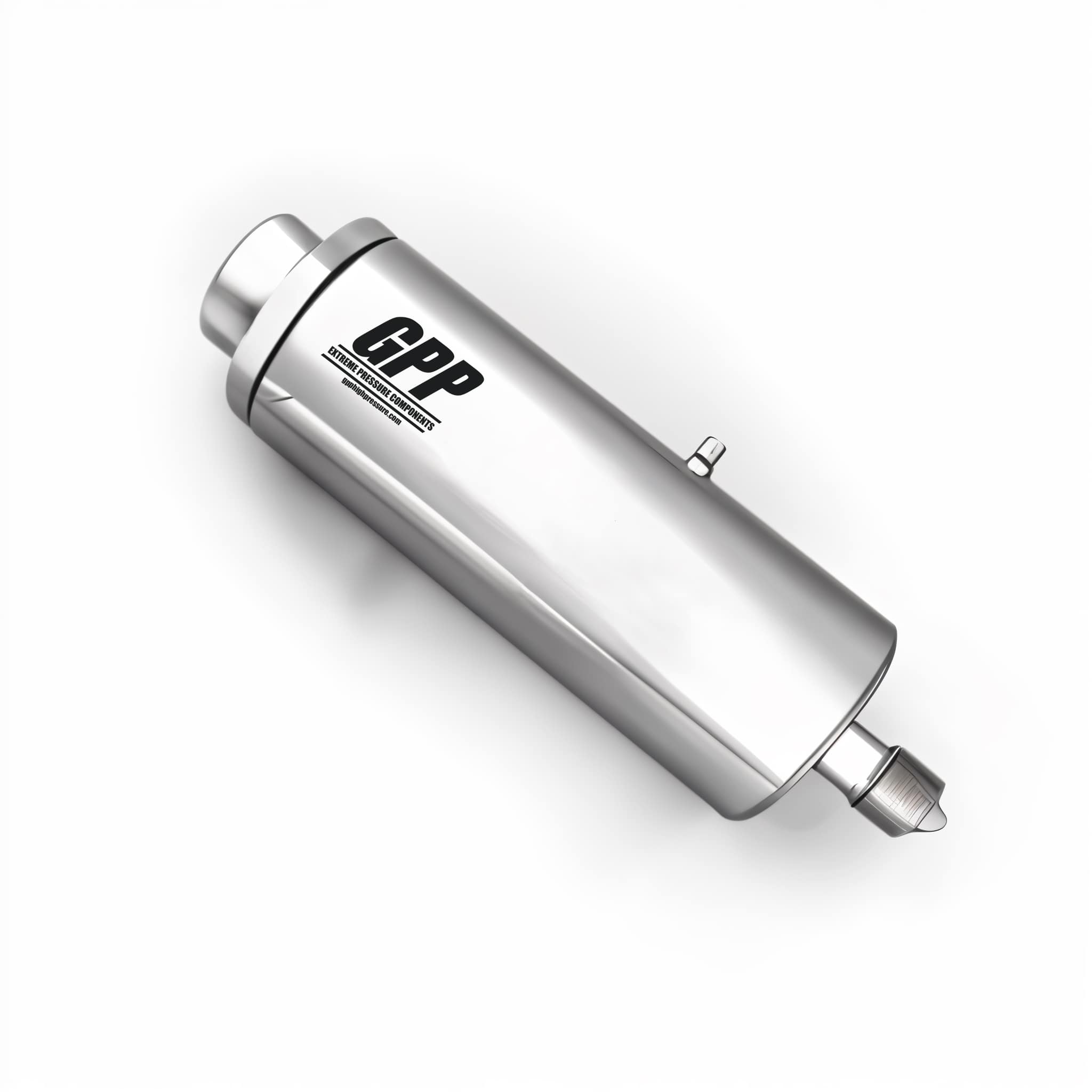

UH Swivels
The UH swivel is engineered to transfer high-pressure water from a fixed supply line to a rotating or twisting mechanism. Recognized as the standard for high-pressure rotary couplings, UH Swivels set the bar for reliability and longevity.
Features:
- Rugged stainless steel build for enhanced durability
- Innovative, leak-resistant seal design minimizes rotational torque
- Convenient external grease fittings for straightforward maintenance
- 0° or 90° inlet connection options for optimized hose management
UH Swivel Data
| PART # | PRESSURE | SPEED | FLOW | FLOW RATING | M. CONNECT | F. CONNECT | TOOL | OVERHAUL KIT | SERVICE KIT |
|---|---|---|---|---|---|---|---|---|---|
| GUH-9HP | 44 KSI / 3000 bar | 1500 RPM | N/A | 0.5 Cv | 3/8 HP | 9/16 HP | T-804 | KG-UH9-O | KG-UH9-S |
| GUH-9HP-90 | 44 KSI / 3000 bar | 1500 RPM | N/A | 0.5 Cv | 3/8 HP | 9/16 HP | T-804 | KG-UH9-O | KG-UH9-S |
